Description
Technical Specification

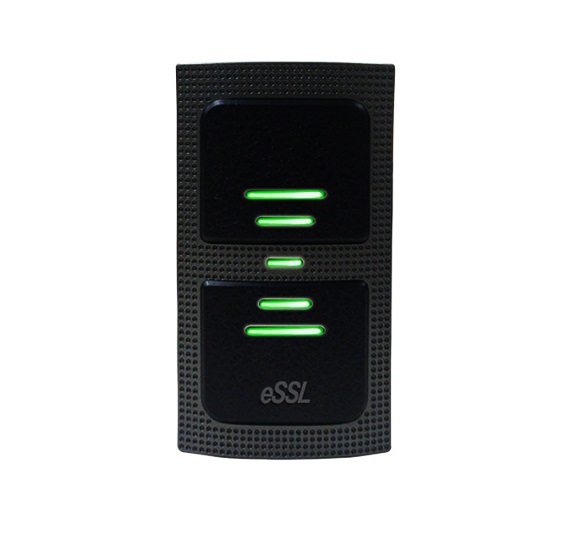

KR500E: 125KHz Proximity card reader
KR500M: 13.56MHz Mifare card reader
Read Range: KR500E – Up to 10CM , KR500M – Up to 5CM
Reading Time (Card): ≤200ms
Power / Current: DC 6-14V / Max.70mA
Connectivity: Wiegand
Input Port: 2ea (External LED Control
Output Format: 26bit Wiegand (default) / 34bit Wiegand (default)
LED Indicator: 2 Color LED Indicators(Red and Green)
Beeper: Yes
Operating Temperature: -20° C to +65°C
Operating Humidity: 10% to 90% relative humidity non-condensing
Color: Black
Dimensions: (W x H x T) 116 x 75 x 17.3mm
Weight: 50g
IP Rate: IP65 rated water resistance & dust proof
