Description
Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1920(H)*1080(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens : 2.8mm, 3.6mm, optional
Angle of View: 92°(2.8 mm),70.9°(3.6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
Protection Level IP66
IR Range Up to 20m

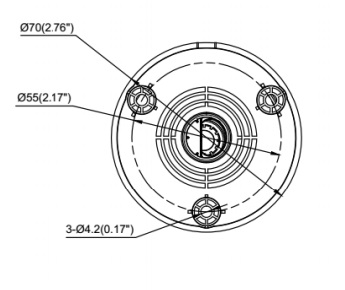

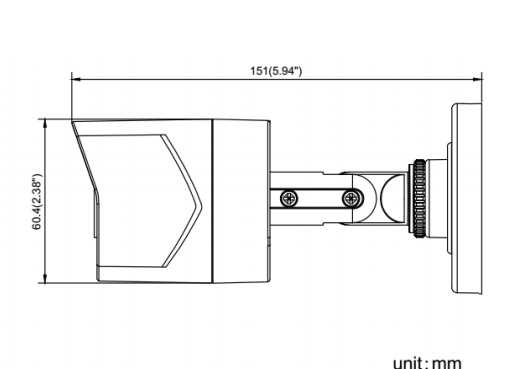

Dimensions Φ70×151mm (Φ2.76”5.94”)
Weight 300 g
