Description
SPECIFICATIONS:
Camera
Image Sensor 2 MP CMOS image sensor
Signal System PAL/NTSC
Frame Rate PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) ×1080 (V)
Min. illumination 0.02 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm fixed lens
Horizontal Field of View 103°(2.8 mm), 82.2°(3.6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) DWDR
Menu
Image Mode STD/HIGH-SAT
AGC Support
Day/Night Mode Smart/color/BW(Black and White)
Backlight Compensation Support
DWDR Support
Language English
Functions Brightness, Sharpness, DNR, Mirror
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 VDC±15%
Power Consumption Max. 4 W
Material Plastic
IR Range Up to 20 m

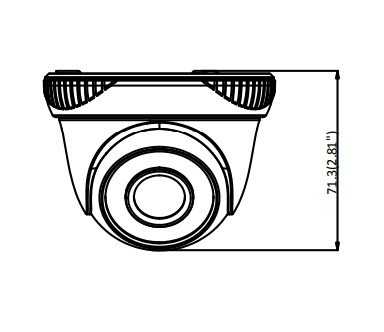

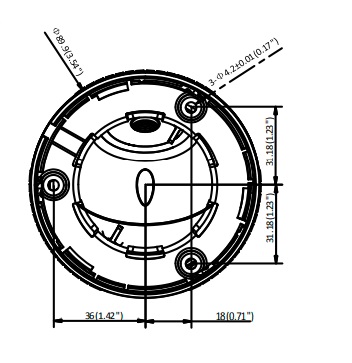

Dimension Ø 89.9 mm × 71.3 mm (Ø 3.54″ × 2.81″)
Weight Approx. 120 g (0.26 lb.)
