HIKVISION CCTV DS-2CE5AD0T-IRP\ECO

Key Features:

2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night, Smart IR
Up to 20m IR distance

Categories: , ,

Description

HIKVISION CCTV CAMERA DS-2CE5AD0T-IRP\ECO

Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1920(H)*1080(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens: 2.8mm, 3.6mm optional
Angle of View: 92°(2.8 mm),70.9°(3.6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio >62dB

General

Operating Conditions -20 °C – 45 °C (-4 °F – 113 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
IR Range Up to 20m

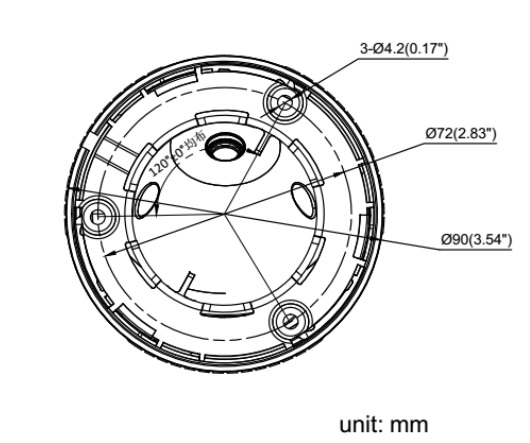

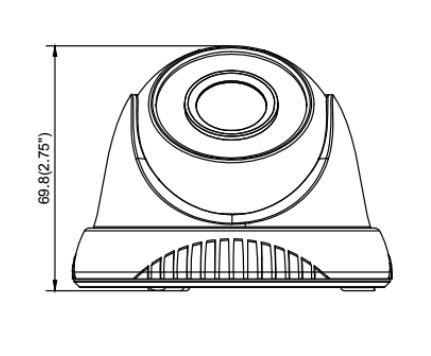

Dimension Φ90 × 69.8 mm(Φ3.54” × 2.75”)
Weight 250 g
