Description
SPECIFICATIONS:
Camera
Image Sensor – 2 MP CMOS
Max. Resolution – 1920 (H) × 1080 (V)
Min. Illumination – 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Day & Night – ICR
Angle Adjustment – Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Signal System – PAL/NTSC
Lens
Lens Type – 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens Mount – M12
Image Parameters Switch – STD/HIGH-SAT
Image Settings – Brightness, Sharpness, Smart IR
Frame Rate –
TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC
Day/Night Mode – Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) – Digital WDR
Image Enhancement – BLC, HLC
White Balance – ATW/MANUAL
AGC – Support
Interface
Video Output – Switchable TVI/AHD/CVI/CVBS
General
Material – Metal

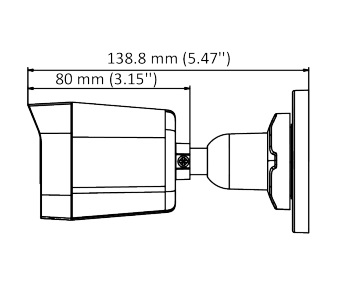

Dimension – 57.9 mm × 60.9 mm × 138.8 mm (2.28″ × 2.39″ × 5.47″)
Approx. 257 g (0.57 lb.)
Operating Condition – -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Communication – HIKVISION-C
Language – English
Power Supply – 12 VDC ± 25%
Consumption – Max. 3 W
IR Range -Up to 30 m
Approval
Protection – IP67
