Description
SPECIFICATIONS:
Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) × 1080 (V)
Frame Rate
TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC
Min. illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Field of View
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens Mount M12
Day & Night ICR
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR/BLC/HLC/Global
Noise Reduction 2D DNR
Language English
Function Brightness, Sharpness, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply 12 VDC ± 25%
Power Consumption Max. 2.2 W
Protection Level IP67
Material Plastic
IR Range Up to 25 m
Communication HIKVISION-C

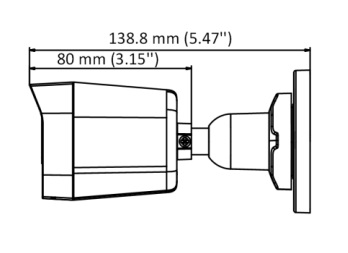

Dimensions 57.9 mm × 60.9 mm × 138.8 mm (2.28″ × 2.39″ × 5.47″)
Weight Approx. 141 g (0.31 lb.)
