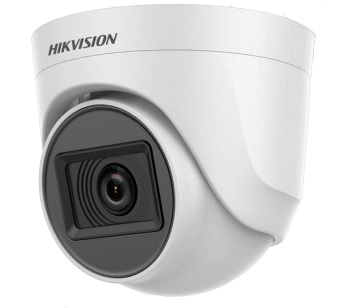

Description
SPECIFICATIONS:
Camera
Image Sensor – 2 MP CMOS
Max. Resolution – 1920 (H) × 1080 (V)
Min. Illumination – 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time – PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & Night – ICR
Angle Adjustment – Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System – PAL/NTSC
Lens
Lens Type – 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8
Lens Mount – M12
Image Parameters Switch – STD/HIGH-SAT
Image Settings – Brightness, Sharpness, Mirror, Smart IR
Frame Rate – TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Day/Night Mode – Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) – Digital WDR
Image Enhancement – Yes
White Balance – Auto/Manual
AGC – Support
Interface
Video Output – Switchable TVI/AHD/CVI/CVBS
General
Material – Plastic

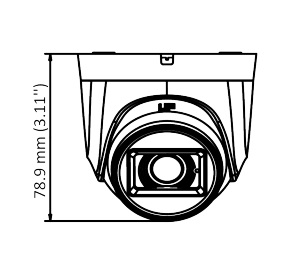

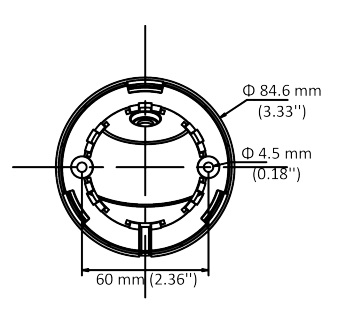

Dimension – Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
Approx. 140.5 g (0.31 lb.)
Operating Condition – ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication – HIKVISION-C
Language – English
Power Supply – 12 VDC ± 25%
Consumption – Max. 2.7 W
IR Range – Up to 20 m
