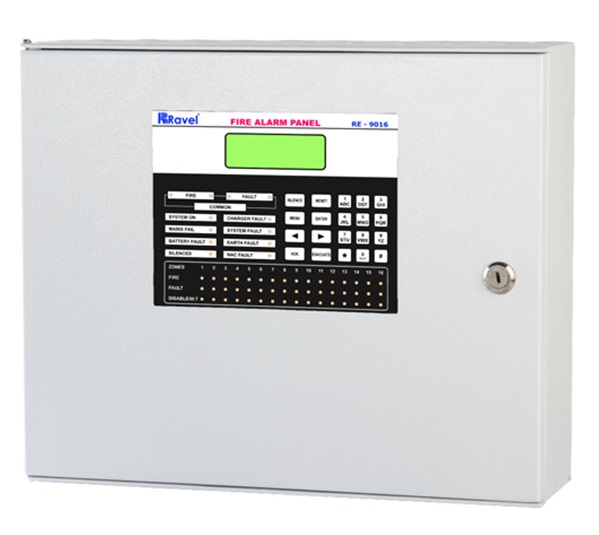

RAVEL RE – 900 Series Fire Alarm Control Panel

Features :
Complies with UL -864 and NEPA -72.
Operates on 120 – 220VAC 60 /50 Hz, AC mains power supply.
Standby (battery) backup 24 VDC power supply with built in charger.
Touch keypad for user friendly operation.
Epoxy powder coated finish.
Class- B, Style B / C initiating device circuit (IDC).
All zones accept smoke detectors and normal open contact devices.
Class B notification appliance circuits (NAC).
NAC shall be programmed as AUTO SILENCE / Silence Inhibit.
Error free Fire / Fault status in unambiguous colored LED indication.
1000 Event storage with RTC.
Main, Standby status with audible and visual indication.
Two Form C relays for fire and fault.
Resettable / Steady 24VDC.
Output.RS 485 Communication facility.
TCP/IP facility (Optional).
MODBUS for Building Management System integration (Optional).
PC software (optional).
External zone wise sounder/contact via RS 485 (Optional).
All field wiring circuits are supervised.
Zone Isolation facility with loop voltage cut off.
Zones available : 12, 16, 20, 24, 32, 48, 64,96 and 128.Facility to connect Public Address System (PA) through RS-485 Communication.
Maximum 16 panels can be connected to a single network.20 x 4 dot matrix LCD display.
